Waste tire recycling solutions

2020-04-15

The waste tire recycling production line is composed of various types of heavy equipment. Its function is to fully separate rubber, steel wire and fiber materials among car tires, truck tires and OTR tires. According to customer needs, rubber materials can be pelletized and ground. This series of production lines operate at room temperature without any chemical additives and will not cause secondary pollution to the environment. The output of different types of production lines ranges from 3000 kg / h to 6000 kg / h.

"Model-based full-automatic waste tire normal temperature decomposition system" adopts the normal temperature crushing method to recycle used tires and carry out resource recycling and secondary application. It can achieve tire crushing, steel wire separation, fiber separation, and tire powdering at one time without any chemical additives. It can produce 0.42-0.12mm fine rubber powder at room temperature, which can effectively treat waste tires, while coexisting with resource recycling and environmental protection. Compared with the traditional crushing method, the "modeled fully-automatic waste tire normal temperature decomposition system" of Enpat in the United Kingdom has good energy-saving effect and is at the domestic and international advanced level. "Three small pieces" is of great significance.

Waste Tire Recycling Machine

Waste Tire Recycling Machine

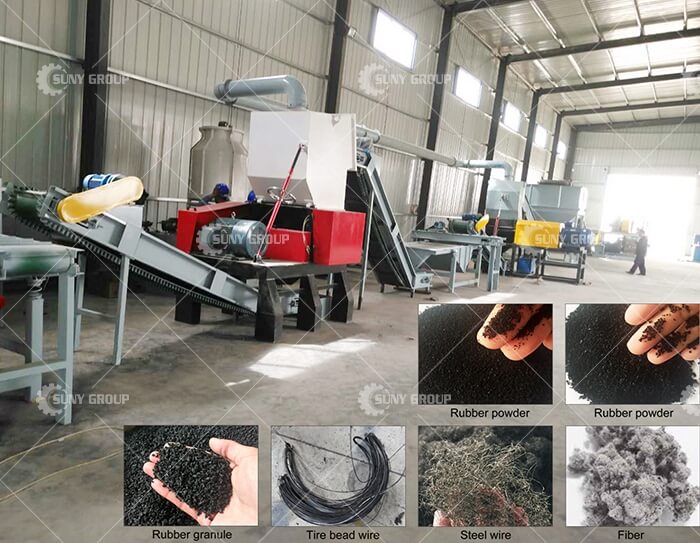

Waste tire recycling production line includes the following main equipment

• Wire drawing machine-pull out the thick wire in the tire

• Infeed conveyor belt – transport tires to rough crusher

• Double shaft crusher – shredding tires

• Conveyor belt – conveys tire fragments

• Wire Separator-Crushing tire fragments to 15-20mm particles to separate rubber from steel wire

• Magnetic Separator – Separating steel wire in rubber

• Conveyor belt – convey rubber particles

• Crusher – further crush the rubber particles to 1-4mm to separate the rubber from the fiber,

Remove some fibers

• Vibrating screen – sort rubber particles according to particle size and remove some fibers

• Fiber Separation System – Separate excess fiber

• Magnetic sorter – go for small wires that may remain

• Bagging system

• Central dust collector – collecting dust and fibers from the production line

• Control electric box
