Copper electrolysis equipment product introduction

2020-07-27

Unit types: 1. Special lifting equipment for copper electrolysis

Copper electrolysis automatic crane and spreader; automatic crane 2mm high-precision positioning; dedicated crane;

2. Robotic cathode stripping unit

Arrangement and distance device; transfer trolley device; washing system; rapid air drying; cathode stripping device; cathode plate verticality detection device; cathode copper plate conveying, stacking, and packing device;

3. Residual pole washing unit

Automatic cleaning system; stacking device; fully enclosed flip structure;

4. Anode shaping unit

Copper electrolysis equipment
Copper Electrolysis Machine

Anode copper; anode plate conveying mechanism; shaping machine; straightening earphone; milling earphone; anode plate discharging machine; high-speed milling technology; horizontal shifting conveyor;

5. Permanent stainless steel cathode plate

316L stainless steel plate; conductive rod; insulating clip edge strip;

Keywords related to copper electrolysis: copper; electrolytic refined copper; stainless steel cathodic electrolysis; permanent cathodic electrolysis; permanent stainless steel cathode plate; electrolyte; nickel sulfate; circulating water; glass fiber reinforced plastic electrolyzer;

2. Key parameters:

The key parameters of the robot cathode stripping unit: Equipment form: robot stripping type

Number of cathode plates in a single slot: 55 pieces/slot

Cathode plate specifications: 1050mmx1016mm

Spacing between cathode plates: 100mm

Cathode plate stripping capacity: 200-600 pieces/hour

Single weight of stainless steel cathode plate: 45kg/piece

Electrolyte composition: Cu2+: 45~50g/l; fH2SO4: 180~200g/l; CL-: <0.1g/l

Control method: PLC

Noise level: 1 meter away from the device, the noise is below 85dB(A)

(Robot cathode stripping unit) Product application:

Automatic scheduling, transportation, washing, stripping of cathode plates in copper electrolysis workshop, stacking of cathode copper, packing and conveying of steel belts.

(Robot cathode stripping unit) Product features: 1. Thorough cleaning, quick air drying, no residual electrolyte.

2. The stripping capacity>600 pieces/hour, the falling pieces are gentle and noiseless.

3. Flexural pre-peeling, flipping peeling, and impact peeling are integrated, and there is no damage to the electrode plate.

4. Automatic palletizing, packing and conveying.

5. Automatic identification of obstacles, low failure rate and high safety.

(Special lifting equipment for copper electrolysis) Product application: The cathode and anode plates of the copper electrolysis workshop are automatically discharged and installed in the electrolytic cell.

(Special lifting equipment for copper electrolysis) Product features: 1. Unique insulation protection technology

2. Automatic crane 2mm high precision positioning

3. High level of anti-sway and anti-magnetic

4. Remote diagnosis and remote maintenance system

5. Infrared short circuit detection of electrolytic cell

(Anode shaping unit) Product application: automatic shaping, testing, scheduling and transportation of anode plates in copper electrolysis workshop.

(Anode shaping unit) Product features: 1. Nine-point flattening device

2. High efficiency, side milling device and bottom milling device are arranged in parallel

3. Walking beam structure instead of chain conveyor

(Remaining electrode washing unit) Product application: automatic cleaning, quick air drying, stacking, packing and conveying of residual electrode plates in copper electrolysis workshop.

(Residual pole washing unit) Product features: 1. Continuous operation capacity ≥ 400 pieces/h, stable performance

2. Good washing effect, no anode mud and electrolyte residue on the plate

3. Automatic washing, air drying, stacking and transfer, low failure rate

4. Fully enclosed flip structure to meet the washing requirements of different residual plates

(Permanent stainless steel cathode plate) Product application: cathode conduction and copper precipitation in copper electrolysis workshop.

(Permanent stainless steel cathode plate) Product features: 1. Excellent conductivity

2. The service life is more than 15 years

3. The annual replacement rate is less than 10%

4. The service life of the clamping edge is more than 2 years

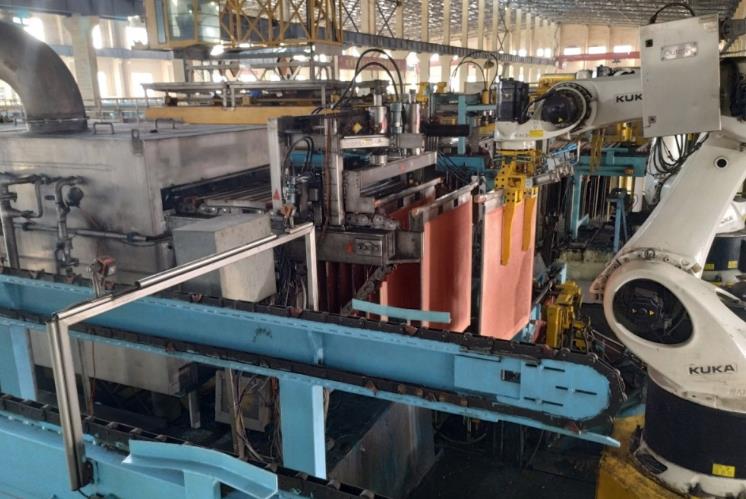

Robot cathode stripping unit

Product description: The robot cathode stripping unit is used in the copper electrolysis workshop. The process includes the automatic scheduling, transfer, washing, air-drying, grabbing, stripping of the cathode plate, the palletizing of the cathode copper, the packing and conveying of the steel belt.

Product parameters: Equipment form: Robot peeling type

Number of cathode plates in a single slot: 55 pieces/slot

Cathode plate specifications: 1050mmx1016mm

Spacing between cathode plates: 100mm

Cathode plate stripping capacity: 200-600 pieces/hour

Single weight of stainless steel cathode plate: 45kg/piece

Product features: * Thorough cleaning, quick air drying, no residual electrolyte.

*Peeling capacity>600 pieces/hour, the falling pieces are gentle and noiseless.

*Flexible pre-peeling, flipping peeling, and impact peeling are integrated, and there is no damage to the electrode plate.

*Automatic palletizing, packing and conveying.

* Automatic identification of obstacles, low failure rate and high security.

Robot anode shaping unit

Product description: The anode shaping unit is used in the copper electrolysis workshop. The process includes anode plate transportation, plate surface shaping, ear correction, ear milling, anode plate discharge, scheduling and transportation.

Product features: *Nine-point flattening device

*High efficiency, the side milling device and the bottom milling device are arranged in parallel

*Transverse conveyors replace chain conveyors
