Lead-acid battery cutter equipment

2020-01-04

battery cutter equipment
battery cutter equipment

Lead-acid battery cutter equipment principle and characteristics

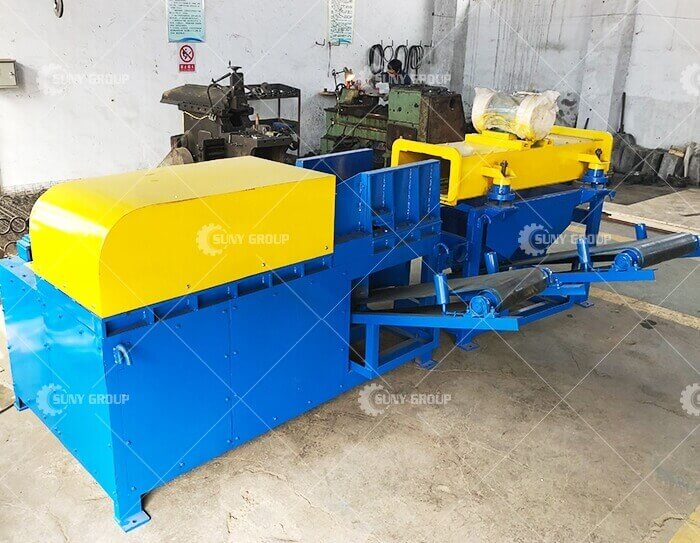

Equipment name: Lead-acid battery cutter equipment

Processed materials: used lead-acid batteries such as electric vehicles, automobiles, and motorcycles

Production capacity: 6t / h (different configuration and output are different, subject to actual conditions)

Ancillary equipment: Battery cutter lead-acid battery dismantling machine

Project background: With the increasing number of automobiles and electric vehicles, more and more waste lead-acid storage becomes nowhere to be placed, which not only pollutes the environment but also wastes resources. In fact, this can be recycled and turned into waste. The battery dismantling machine disassembles the old battery to achieve the purpose of reusing the battery lead.

Product features of lead-acid battery cutter equipment

1. A wide range of applications, including various lead-acid batteries such as automobiles, motorcycles, electric vehicles.

2. High efficiency, the daily output is about 40-60 tons.

3. Professional lead-acid battery recycling equipment can perfectly cut off the upper cover and take out the complete lead block and plastic.

4. It is safe and stable, which improves the defect of using manual manual smashing and cutting waste batteries in the traditional technology, and also protects the operator from being harmed during the operation.

Principle of lead-acid battery cutter equipment:

The waste battery dismantling machine manually feeds the used battery, the used battery enters the body, the propulsion system pushes the battery into the position to be cut, and the crank turns to drive the cutting blade to accurately remove the cap of the used battery [the cutting blade can be adjusted], and the propulsion system is Push the next battery forward, push forward against the previous battery, and then the high-frequency vibration motor quickly works to shake out the lead core in the battery case, and the case core is completely disassembled and separated.
