Zhengzhou Zhengyang Machinery Equipment Co., Ltd

Fully Automatic Mask Making Machine 1+1

Capacity:

Raw Materials:

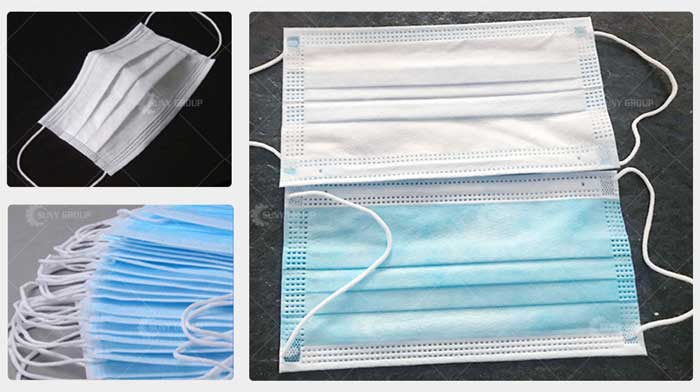

Final Products:

SEND EMAIL: sunymachine@gmail.com

Project Description

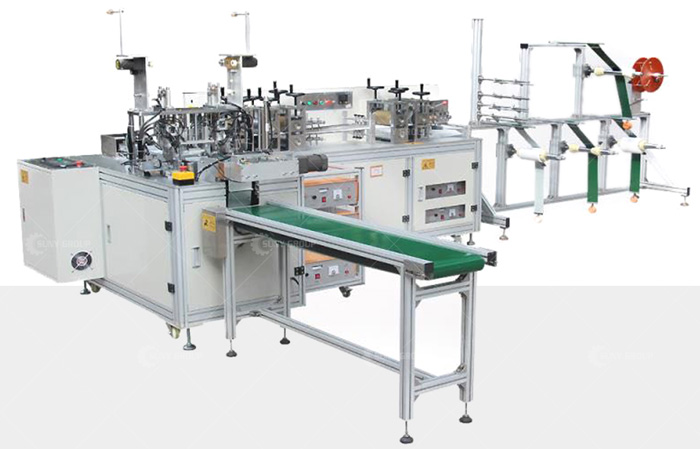

Fully Automatic Mask Making Machine 1+1

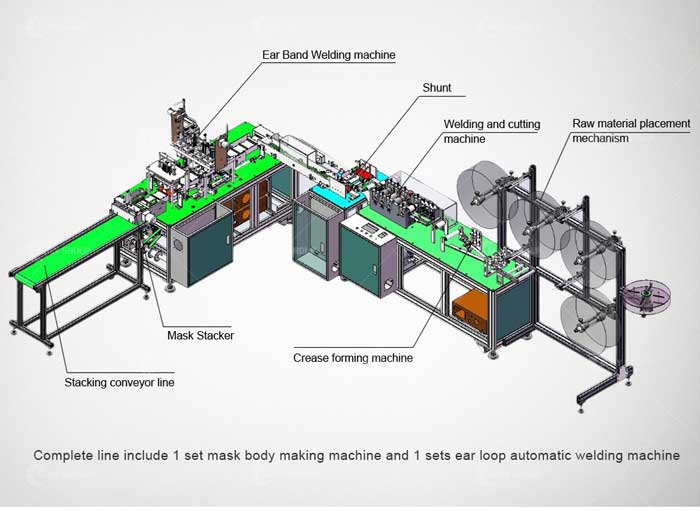

This machine is mainly used for the automatic making of flat masks: the whole roll of fabric is driven by rollers after unwinding, and the fabric is automatically folded and hemmed; Bridge of nose strip whole roll traction unroll,cut to length and guide into hemmed fabric. Two sides Ultrasonic welding to the seal, then ultrasonic 2 ends sealing, cutting and shaping by a cutter; conveying the mask to the two mask ear band welding stations through an assembly line, and finally forming the mask by ultrasonic welding; when the mask is made, it is transported to the flat belt line for collection. Complete line include 1 set mask body making machine and 1 sets ear loop automatic welding machine.

STRUCTURAL PARAMETERS
Products Name Automatic Face Mask Making Machine
Production Capacity 40-60pcs/min
Dimension(L*W*H) 2700mm*2350mm* 1700mm
Power 8kw
Voltage 220V 1 Phase
Delivery time Delivery in 20-25 days
Operating environment temperature 10~35 °C, humidity 5-35% HR, no flammable, corrosive gas, no dust.

Production specifications: Standard type: 175 * 95mm

Production specifications
INSTALLATION AND COMMISSIONING

The machine should be ready regularly according to the contract date after the seller receives the deposit confirmed by both parties. The seller shall notify the buyer through e-mail telephone message that the machine has been completed and is ready for delivery.

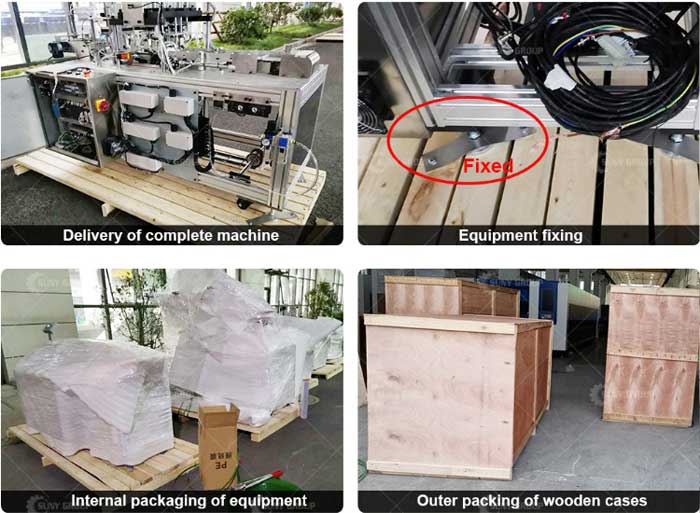

DELIVERY

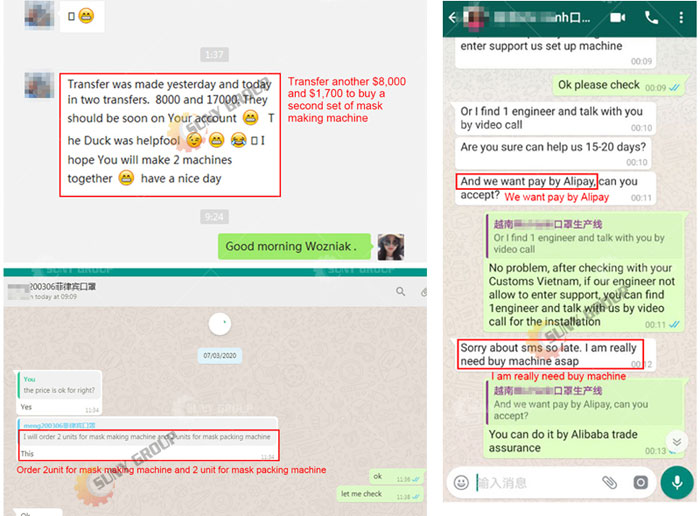

MORE THAN 80% OF INQUIRY CUSTOMERS COOPERATE WITH US

MORE THAN 80% OF INQUIRY CUSTOMERS COOPERATE WITH US
Technical Parameter
Note : Processing capacities are the average value, depending on the capacity, the number of stand-alone units is different, Please inquire according to your needs.
Inquiry

Thank you for your interest in suny group. If you want to learn more about our E-waste recycling plant, copper wire recycling machine and other machines, Contact us now to find out what we can do for you next project!E-mail:sunymachine@gmail.com

Name: *
Country:
Email: *
Phone:
Instant Messenger:
Raw Material:
Capacity:
Message: *

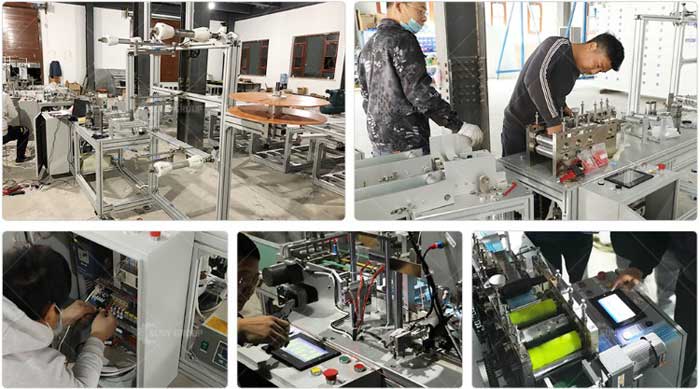

Test and inspection

Before delivery, we all equipment will imitate the real production environment, use the customer need to deal with material test, to ensure the production line performance and production meet customer requirement. We sincerely invite customers came to the scene for final test.
