Waste Motor Crushing Sorting and Recycling Production Line

Waste motors contain a large amount of high-value materials such as copper, aluminum, and silicon steel sheets, but their structure is complex and difficult to disassemble. Traditional manual processing is inefficient and has high losses, which can no longer meet modern recycling needs. In response to this problem, SUNY GROUP has developed a waste motor crushing and sorting recycling production line, which achieves efficient and environmentally friendly motor resource recycling through an automated and modular equipment combination.

Waste Motor Crushing Sorting and Recycling Production Line

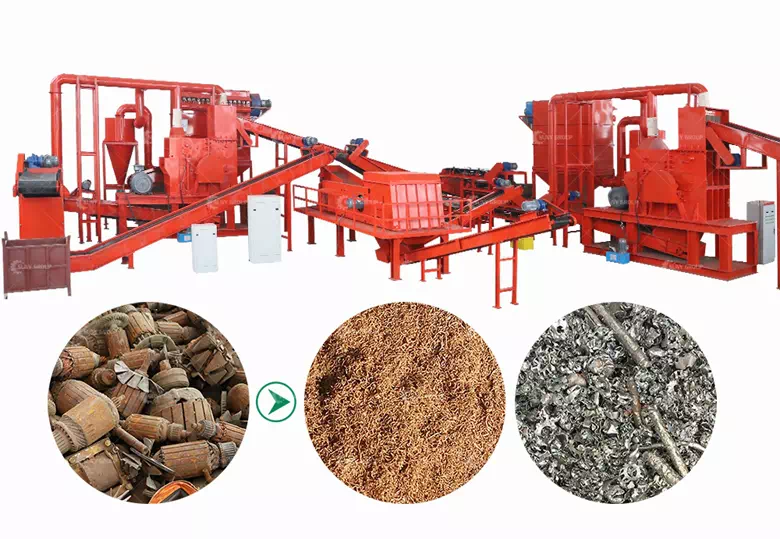

The entire production line is mainly composed of a pre-crusher, a heavy hammer crusher, a magnetic separator, an eddy current separator, an air separator, and a dust removal system. First, the waste motor is manually or mechanically placed in the pre-crusher as a whole to complete the initial crushing and peeling of the shell. Then it enters the main crushing system, and through high-intensity hammering and shearing, the motor rotor, stator, iron core, and other components are completely crushed to a small particle size.

The crushed mixed material then enters a multi-stage sorting process. First, the iron substances, such as motor housing and stator core, are separated by a strong magnetic separator; then the aluminum and non-metallic impurities are efficiently separated by an eddy current separator; and then the copper, plastic, and light debris are further finely classified according to the specific gravity difference through wind separation equipment. Finally, high-purity copper particles, aluminum particles, and other recyclable materials are obtained.

The waste motor crushing and sorting recycling production line is widely used in waste home appliance dismantling plants, resource recycling companies, and non-ferrous metal recycling companies. It not only solves the problems in the recycling of waste motors, realizes the efficient recycling of metals such as copper, aluminum, and iron, but also brings considerable economic benefits and environmental protection value to enterprises. If you need or want to know more details, please feel free to contact us for consultation.
