Copper Rod Manufacturing Process Equipment

As an important industrial raw material, copper rod is widely used in many fields such as electric power, electronics, communications, etc. It has good electrical conductivity and ductility. The production process of copper rods includes several links, each of which has a crucial impact on the final quality of copper rods. Generally speaking, the production process of copper rods can be divided into melting, casting, drawing, annealing surface treatment, and other major steps, and the implementation of these links can not be separated from all kinds of professional production equipment.

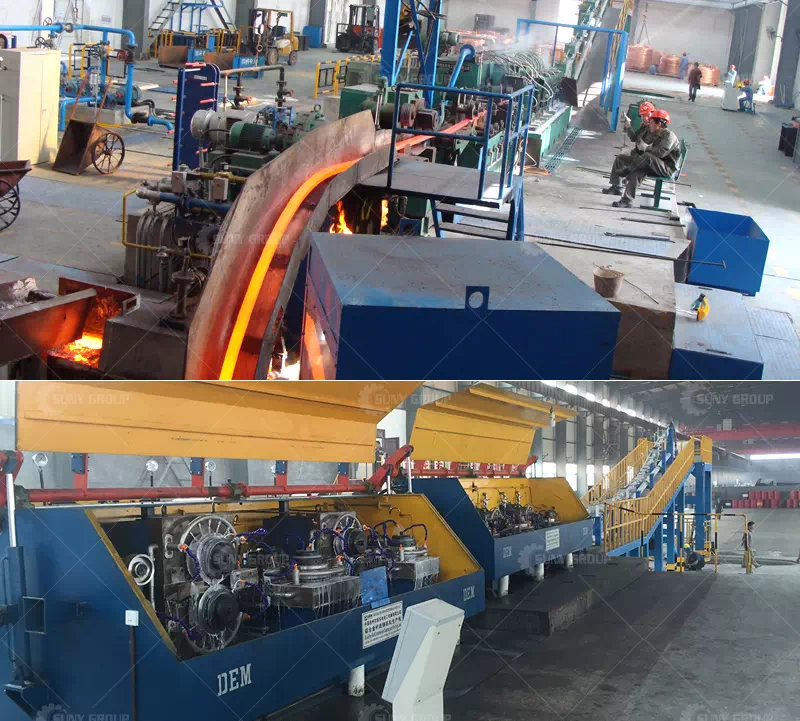

Copper Rod Manufacturing Process Equipment

First of all, melting is the first step in the production process of copper rods. Copper smelting is usually carried out in electric or blast furnaces, where raw materials such as copper ore and copper scrap are heated to high temperatures to melt them into liquid copper. The melting process requires strict control of the temperature and furnace atmosphere to ensure the purity of the copper. For different copper sources, the melting temperature and method will be different, to ensure that the melted copper liquid can smoothly enter the next process. In the casting process, the molten copper is injected through a continuous casting machine or mold and cooled to form ingots or bars. The introduction of continuous casting technology makes the copper casting process more efficient and energy-saving, and the quality and shape of the castings can be better controlled, avoiding the defects of the traditional casting method.

After casting, the copper bar enters the drawing process. Drawing is the process of stretching copper bars into long, thin rods using a drawing machine, a process that requires high demands on the hardness, plasticity, and surface quality of the copper. The outer diameter, length and surface flatness of the copper rods have to reach a certain standard, therefore, the precision of the drawing equipment and operating techniques directly affect the quality of the finished copper rods. During the drawing process, the temperature of the copper rod rises as it is strongly stretched, so it needs to be annealed with the help of an annealing furnace. The annealing process by heating the copper rod to a certain temperature, so that its grain reorganization, reduces hardness, and restores plasticity, reduces brittleness. Annealed copper rods are easier to subsequently process and use. The temperature control system of the annealing furnace is critical, as different sizes of rods require different annealing times and temperatures to ensure optimum performance.

In addition, there are strict quality control measures in every step of copper rod production. Especially after annealing and drawing, the surface finish, hardness, and dimensional accuracy of copper rods must undergo a series of tests to ensure that the quality of each rod meets the requirements. Common testing equipment includes a hardness tester, thickness gauge, and spectrum analyzer. This equipment not only helps real-time quality control during the production process but also provides a reliable quality basis for the final product to leave the factory.

As the market requirements for copper rod products continue to improve, copper rod production equipment is also constantly updated and upgraded. Nowadays, automated and intelligent copper rod production lines have gradually become the mainstream, automated equipment can accurately control the parameters of each process, to achieve more efficient and stable production. In addition, energy saving and environmental protection have also become an important direction in the design of copper rod production equipment. Through the optimization of furnace temperature control, recovery of waste heat, reduction of harmful gas emissions, and other measures, modern copper rod production lines improve production efficiency, but also effectively reduce energy consumption and environmental pollution.
