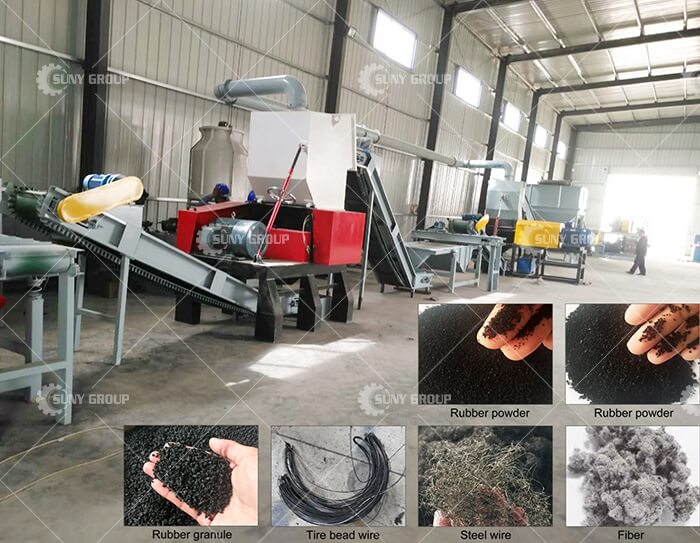

Waste Tire Recycling Machine

• Wire drawing machine-pull out the thick wire in the tire

• Infeed conveyor belt – transport tires to rough crusher

• Double shaft crusher – shredding tires

• Conveyor belt – conveys tire fragments

• Wire Separator-Crushing tire fragments to 15-20mm particles to separate the rubber from the wire

• Magnetic Separator – Separating steel wire in rubber

• Conveyor belt – convey rubber particles

• Crusher – further crush the rubber particles to 1-4mm to separate the rubber from the fiber and remove part of the fiber

• Vibrating screen – sort rubber particles according to particle size and remove some fibers

• Fiber Separation System – Separate excess fiber

• Magnetic sorter – go for small wires that may remain

• Bagging system

• Central dust collector – collecting dust and fibers from the production line

• Control electric box
